ÅLESUND leased fisheries patrol vessel (1996)

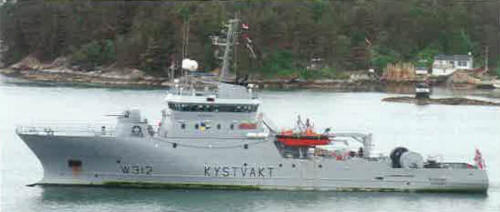

Ålesund 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Ålesund | W312 | Myklebust MV, Gurskebotn | 4/1996 | stricken 2014 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 1470 |
| Length, m | 57.0 pp 63.2 oa |
| Breadth, m | 11.5 |
| Draught, m | 4.67 |
| No of shafts | 1 |
| Machinery | 1 Wichmann 8V28B diesel |
| Power, h. p. | 3600 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 20600(13) |
| Armament | 1 x 1 - 40/70 Bofors 315 |
| Electronic equipment | 2x radars |
| Complement | 23 |
Graphics
Ålesund 2009
Project history
Fisheries patrol vessel in stern-haul trawler hullform. Helicopter facilities were fitted. Two semi-rigid inspection boats were carried. Had a 37t bollard-pull towing winch.
Modernizations
None.
Naval service
No significant events.
