TARVA patrol boats (1974)
Welding 1979
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
TSD1 Tarva, 1980s- RSD23 Tarva, 1990s- RSD23 Brimse ØSD1 Welding, 1990s- HP8 Welding |
Fjellstrand, Omastrand: TSD1, ØSD1 |
1974: TSD1, ØSD1 |
none |
none |
1998: RSD23 2003: HP8 |
Technical data
| Displacement standard, t | 28 |
|---|---|
| Displacement full, t | |
| Length, m | 16.3 |
| Breadth, m | 5.30 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 6V-71 diesels |
| Power, h. p. | 800 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Decca nav. radar |
| Complement | 4 + 14 passenger |
Graphics

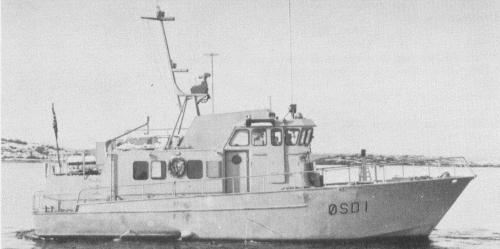

Welding 1979
Project history
Local patrol boats / personnel ferries.
Modernizations
None
Naval service
No significant events.
