HVASSER patrol launches (2003)
Hvasser 2006
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
SHV102 Hvasser SHV103 Hekkingen |
Henriksen MV, Tønsberg: SHV102, 103 |
2003: SHV102, 103 |
none |
none |
2017-18: SHV102, 103 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 14 |
| Length, m | 13.7 |
| Breadth, m | 4.10 |
| Draught, m | 0.90 |
| No of shafts | 2 waterjets |
| Machinery | 2 Volvo-Penta TAMD74EDC diesels |
| Power, h. p. | 900 |
| Max speed, kts | 42 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 2 + 13 passengers |
Graphics

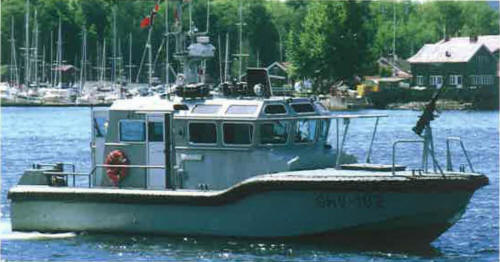

Hvasser 2006
Project history
Mutifunction patrol launches of Gyda design. Aluminium hull.
Modernizations
None
Naval service
No significant events.
