HÅREK patrol launches (2003-2004)
Kvitsøy 2008
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
SHV101 Hårek SHV104 Kvitsøy SHV105 Slotterøy SHV106 Halten |
Maritime Partner, Ålesund: SHV101, 104-106 |
2003-2004: SHV101, 104-106 |
none |
none |
in service (2019): SHV101, 104-106 |
Technical data
| Displacement standard, t | 10 |
|---|---|
| Displacement full, t | |
| Length, m | 13.3 |
| Breadth, m | 3.65 |
| Draught, m | 0.75 |
| No of shafts | 2 waterjets |
| Machinery | 2 Volvo-Penta TAMD74EDC diesels |
| Power, h. p. | 900 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 2 + 13 passengers |
Graphics

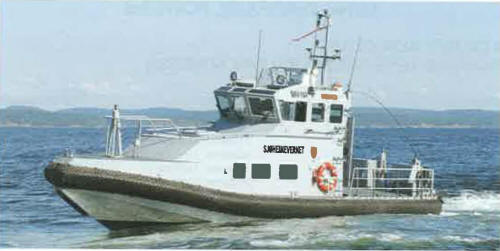

Kvitsøy 2008
Project history
Anti-terrorist and mutifunction patrol launches of Alusafe 1300 design. Aluminium hull.
Modernizations
None
Naval service
No significant events.
