OKPOKU patrol boats (2013-2018)
Okpoku 2012
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P175 Okpoku P176 Bomadi P177 Badagry P185 Shiroro P186 Ose P189 Gongola P190 Calabar |
Océa, St-Nazaire, France: P175-177, 185, 186, 189, 190 |
2013: P175-177 2018: P185, 186, 189, 190 |
none |
none | in service (2019): P175-177, 185, 186, 189, 190 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | |
| Length, m | 19.7 wl 23.6 oa |
| Breadth, m | 5.80 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 3050 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 11 |
Graphics

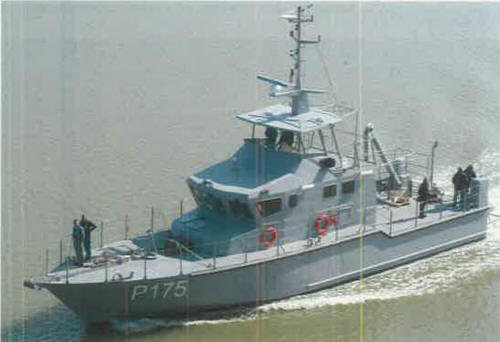

Okpoku 2012
Project history
Océa FPB72 Mk II design. Intended for protection of offshore oil facilities.
Modernizations
None.
Naval service
No significant events.
