ANDONI patrol boats (2012-2014)





Andoni 2012

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Andoni P100   Lagos 12.2007   1.6.2012 in service (2019)
Karaduwa P102   Lagos     2014 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Andoni P100   Lagos 12.2007   1.6.2012 in service (2019) Karaduwa P102   Lagos     2014 in service (2019)

Technical data


Displacement standard, t100
Displacement full, t
Length, m

31.0
Breadth, m

5.50
Draught, m

1.40
No of shafts

2
Machinery

2 Caterpillar C32 diesels
Power, h. p.

3200
Max speed, kts

20
Fuel, t

diesel oil
Endurance, nm(kts)
Armament

1 x 1 - 20/70 Mk 4, 2 x 1 - 12.7/90
Electronic equipment

Furuno radar
Complement

25


Graphics

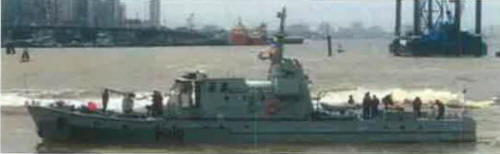

<i>Andoni </i>2012
Andoni 2012


Project history

Domestic design based on the Brooke Marine Town-class patrol craft.

Modernizations

None.

Naval service

No significant events.
