PUKAKI patrol craft (2009)

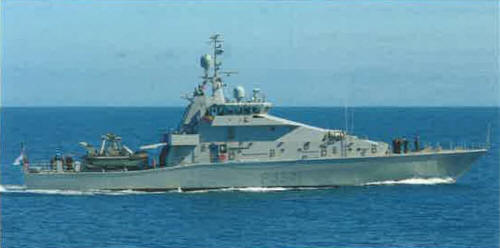

Hawea 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Pukaki | P3568 | Tenix, Whangarei | 21.6.2007 | 6.5.2008 | 14.5.2009 | in service (2019) | |
| Rotoiti | P3569 | Tenix, Whangarei | 3.3.2006 | 30.7.2007 | 17.4.2009 | in service (2019) | |
| Taupo | P3570 | Tenix, Whangarei | 14.12.2007 | 22.7.2008 | 29.5.2009 | in service (2019) | |
| Hawea | P3571 | Tenix, Whangarei | 13.12.2006 | 11.12.2007 | 1.5.2009 | in service (2019) |
Technical data
| Displacement standard, t | 240 |
|---|---|
| Displacement full, t | 340 |
| Length, m | 55.0 |
| Breadth, m | 9.00 |
| Draught, m | 2.90 |
| No of shafts | 2 |
| Machinery | 2 MAN 12VP185 diesels |
| Power, h. p. | 7800 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | 3 x 1 - 12.7/90 |
| Electronic equipment | nav. radar, WARRLOCK ECM suite |
| Complement | 20 + 16 passengers |
Standard scale images
Pukaki 2010
Graphics
Hawea 2011
Project history
Patrol boats of IPV (Inshore Patrol Vessel) built within Protector programme. Ordered in 2004 to replace Moa class boats. Built under merchant standards. 2 7.3m fast RIBs on davits.
Modernizations
None.
Naval service
No significant events.
