PUKAKI patrol boats (1975)
Pukaki 1976
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Pukaki | P3568 | Brooke Marine, Lowestoft, UK | 1.3.1974 | 24.2.1975 | stricken 1991 | ||
| Rotoiti | P3569 | Brooke Marine, Lowestoft, UK | 8.3.1974 | 24.2.1975 | stricken 1991 | ||
| Taupo | P3570 | Brooke Marine, Lowestoft, UK | 25.7.1974 | 29.7.1975 | stricken 1991 | ||
| Hawea | P3571 | Brooke Marine, Lowestoft, UK | 9.9.1974 | 29.7.1975 | stricken 1991 |
Technical data
| Displacement standard, t | 105 |
|---|---|
| Displacement full, t | 135 |
| Length, m | 32.6 |
| Breadth, m | 6.10 |
| Draught, m | 1.70 hull 3.50 max |
| No of shafts | 2 |
| Machinery | 2 Ruston-Paxman 12YCJM diesels |
| Power, h. p. | 3000 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(12) |
| Armament | 1 x 2 - 12.7/90, 1 x (1 - 12.7/90 + 1 - 81/12 M29 mortar), 2 x 1 - 7.6/90 |
| Electronic equipment | Decca 916 radar |
| Complement | 21 |
Graphics

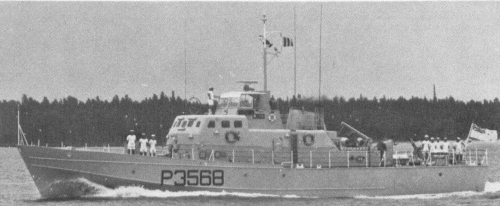

Pukaki 1976
Project history
Patrol boats.
Modernizations
None.
Naval service
No significant events.
