MOA patrol boats (1984-1985)

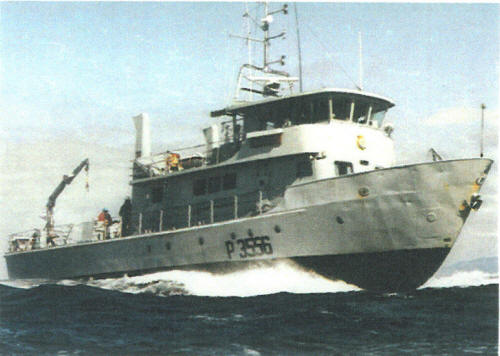

Hinau 2002
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Moa | P3553 | Whangarei Engineering, Auckland | 16.7.1983 | 19.2.1984 | stricken 2007 | ||
| Kiwi | P3554 | Whangarei Engineering, Auckland | 7.5.1984 | 2.9.1984 | stricken 2007 | ||
| Wakakura | P3555 | Whangarei Engineering, Auckland | 29.10.1984 | 26.3.1985 | stricken 2007 | ||
| Hinau | P3556 | Whangarei Engineering, Auckland | 8.5.1985 | 4.10.1985 | stricken 2007 |
Technical data
| Displacement standard, t | 90 |
|---|---|
| Displacement full, t | 105 |
| Length, m | 24.4 wl 26.8 oa |
| Breadth, m | 6.10 |
| Draught, m | 2.18 |
| No of shafts | 2 |
| Machinery | 2 Cummins 6KT-1140M diesels |
| Power, h. p. | 730 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil 11 |
| Endurance, nm(kts) | 1000(12) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Decca 916 radar |
| Complement | 18 |
Graphics
Hinau 2002
Project history
Patrol boats, built under design of torpedo retriever.
Modernizations
1993, Hinau; 1996, Moa, Kiwi, Wakakura: - Decca 916 radar; + Bridgemaster 2000 radar, Klein 595 Tracpoint sonar
Naval service
In 1991 boats received a side-scan sonar to receive minehunting abilities.
