DOLFIJN submarine (1942)

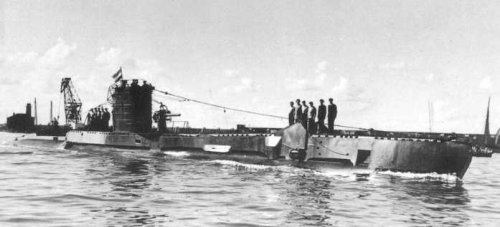

Dolfijn

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Dolfijn (ex-P47) O1   Vickers-Armstrong, Barrow, UK 1941 27.7.1942 10.1942 training hulk 12.1946


Technical data


Displacement standard, t

540

Displacement normal, t

646 / 732

Length, m

60.0

Breadth, m

4.90

Draught, m

3.87

No of shafts

2

Machinery

2 Paxman-Ricardo diesel-generators, 2 electric motors

Power, h. p.

615 / 825

Max speed, kts

11.25 / 10

Fuel, t

diesel oil 55

Endurance, nm(kts)

4050(10) / 30(9)

Armament

1 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V, 4 - 533 TT (bow, 8)

Electronic equipment

 type 286PW or type 291W radar, type 129, type 138 sonars

Complement

36

Diving depth operational, m60


Standard scale images


<i>Dolfijn</i> 1942
Dolfijn 1942


Graphics


<i>Dolfijn</i>
Dolfijn


Project history

British U-class (2nd group) submarine, transferred to Dutch Navy 25.9.1942 even before completion.

Transfer of second submarine of this class P66 (later Varne) was scheduled. She has had time to been named Haai but after 29.10.1942 onboard of transport Abosso 29 submariners directed for her acceptance were died, and transfer have refused.

Modernizations

1942 - 1944: can carry 6 M2 mines instead of torpedoes, - 1 x 1 - 76/40; + 1 x 1 - 76/45 20cwt QF Mk II

Naval service

Dolfijn was stricken in December, 1946 then she was used as training hulk and sold for scrap only in May, 1952.
