L9530 landing craft (1984-1986)

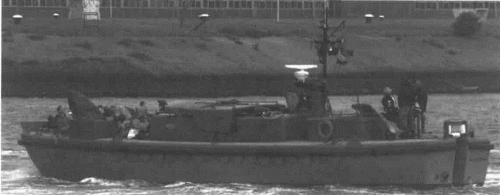

L9533 2011
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
L9530-9535 |
Rijkswerf Willemsoord, Den Helder: L9530-9535 |
1984: L9530, 9531 1985: L9532-9534 1986: L9535 |
None |
None |
2013-2014: L9530-9535 |
Technical data
| Displacement standard, t | 9 |
|---|---|
| Displacement full, t | 14 |
| Length, m | 16.0 |
| Breadth, m | 4.40 |
| Draught, m | 1.30 |
| No of shafts | 1 Schottel swiveling propeller |
| Machinery | 1 DAF-Turbo diesel |
| Power, h. p. | 260 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 220(11) |
| Armament | 1 x 1 - 7.6/90 |
| Military load | 25 troops or 1 Land Rover or 1 BV202E Snowcat |
| Electronic equipment | Furuno radar |
| Complement | 3 |
Graphics
L9533 2011
Project history
LCA Mk 2. GRP construction.
Modernizations
None.
Naval service
No significant events.
