RV40 small landing ship (1979)
RV40 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| RV40 | Grave B. V. | 22.11.1979 | stricken early 2000s |
Technical data
| Displacement standard, t | 815 |
|---|---|
| Displacement full, t | |
| Length, m | 45.8 |
| Breadth, m | 9.50 |
| Draught, m | 2.20 |
| No of shafts | 2 |
| Machinery | 2 Nercedes-Benz OM404 diesels |
| Power, h. p. | 654 |
| Max speed, kts | 9.4 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Military load | deck cargo |
| Electronic equipment | none |
| Complement | 4 |
Graphics

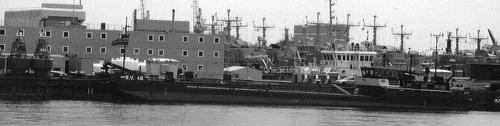

RV40 2001
Project history
Utility tank landing craft.
Modernizations
None.
Naval service
No significant events.
