PB1 patrol boats (1970s)





P2 1990

Ships


Names Builders Commissioned Losses Transfers Discarding

P1 - 4, later PB1-4

Schottel, Warmond: P1-4

1970s: P1-4

none

none

mid-2010s: PB1-4



Technical data


Displacement standard, t
Displacement full, t50
Length, m

17.5

Breadth, m

4.77

Draught, m

1.60

No of shafts

2

Machinery

2 MTU 12V183 TC91 diesels

Power, h. p.

1190

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 12.7/90

Electronic equipment

Decca radar

Complement

6



Graphics

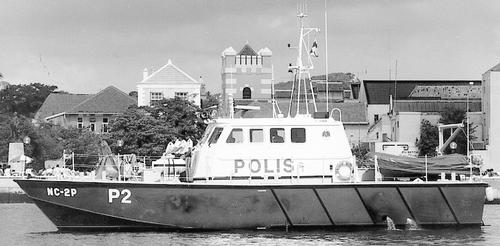

<i>P2 </i>1990
P2 1990


Project history

Patrol craft for Curacao.

Modernizations

None.

Naval service

No significant events.
