MTB418 motor torpedo boats (1942-1944/1944)





MTB488 1944

Ships


Names Builders Completed Losses Transfers Discarding

MTB418 (ex-MGB81)

MTB432 (ex-MGB109)

MTB433 (ex-MGB114), 1948- RJ2, 1951- Jachthond, 1953- P884 Jachthond

MTB436 (ex-MGB112)

MTB437 (ex-MGB113)

British Power Boat, Hythe, UK

4/1942 - 2.1943 // spring 1944: MGB418, 432, 433

3-5/1944 // spring 1944: MTB436, 437

None

United Kingdom, 1946: MTB418, 432, 436, 437

1955: P884



Technical data


Displacement standard, t

37

Displacement full, t46
Length, m21.9
Breadth, m6.27
Draught, m1.28 deep load
No of shafts

3

Machinery

3 Packard petrol engines

Power, h. p.3600
Max speed, kts

38 trials

Fuel, t

petrol 1250 l

Endurance, nm(kts)
Armament

1 x 1 - 57/43 6pdr 7cwt QF Mk II, 1 x 2 - 20/70 Oerlikon Mk II/IV, 2 x 2 - 7.7/94, 2 - 450 TT, 2 DC

Electronic equipment

type 291U radar

Complement12 - 17


Standard scale images


<i>MTB418</i> 1944
MTB418 1944


Graphics

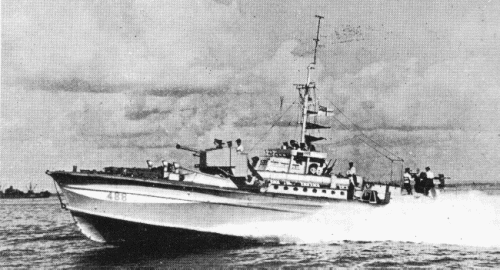

<i>MTB488</i> 1944
MTB488 1944


Project history

70-ft BPB design. Former MGBs, transferred to Dutch Navy in the spring of 1944 to form the second Dutch MTB flotilla. In the Dutch sources presence of torpedo arms on boats doubting expresses.

Modernizations

None

Naval service

No significant events.
