REINIER CLAESZEN monitor (1894)





Reinier Claeszen

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Reinier Claeszen     Rijkwerf Amsterdam 24.9.1890 21.11.1891 1.3.1894 stricken 4.1914


Technical data


Displacement normal, t

2440

Displacement full, t



Length, m

70.0

Breadth, m

13.5

Draught, m

4.55 max

No of shafts

2

Machinery

2 VC, 3 Scottish boilers

Power, h. p.

2315

Max speed, kts

12.5

Fuel, t

coal 96

Endurance, nm(kts)760(10)
Armour, mm

compound; belt: 120 - 100, deck: 75 - 50, turret: 280, CT: 280

Armament

1 x 1 - 209/32 Krupp No.1, 1 x 1 - 173/32 Krupp No.2, 4 x 1 - 50/37 Krupp, 2 - 356 TT (bow?)

Complement

161



Standard scale images


<i>Reinier Claeszen </i>1894
Reinier Claeszen 1894


Graphics

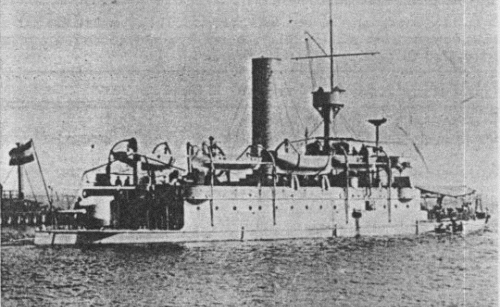

<i>Reinier Claeszen</i>
Reinier Claeszen


Project history

A low freeboard monitor with an amidships superstructure, the 21cm gun in a turret forward and the 17cm aft in a shield.

Ship protection

Armoured 120-100mm belt protected full ship length and was closed by 75-50mm deck. Turret had 280mm sides.

Modernizations

None.

Naval service

No significant events.
