SIDI IFNI small landing ship (2016)
Sidi Ifni 2016
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| سيدي إفني [Sidi Ifni] | 409 | Piriou, Lorient et Concarneau, France | 4/2016 | 23.7.2016 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | ~800 |
| Length, m | 49.9 |
| Breadth, m | 11.0 |
| Draught, m | |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 1340 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | |
| Military load | 300 t cargo |
| Electronic equipment | 2x nav. radars |
| Complement | 22 |
Graphics

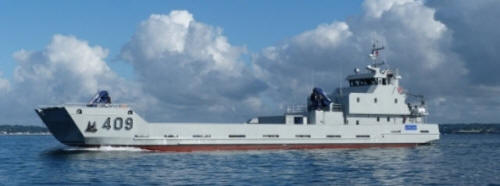

Sidi Ifni 2016
Project history
LCT50 design. 200m³ cargo space, two 3.4t cranes.
Modernizations
None.
Naval service
No significant events.
