ERRAID patrol boats (1988)
El Kaced 2013
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
209 اريد [Erraid] 210 اركض [Erraced] 211الكاسد [El Kaced] 212 سيد [Essaid] |
CMN, Cherbourg, France: 209-212 |
1988: 209-212 |
none |
none |
in service (2019): 209-212 |
Technical data
| Displacement standard, t | 81 |
|---|---|
| Displacement full, t | 89 |
| Length, m | 30.0 pp 32.2 oa |
| Breadth, m | 5.35 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 SACM MGO 12V BZSHR diesels |
| Power, h. p. | 2700 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(15) |
| Armament | 1 x 1 - 20/90 F2 |
| Electronic equipment | Decca radar |
| Complement | 12 |
Graphics

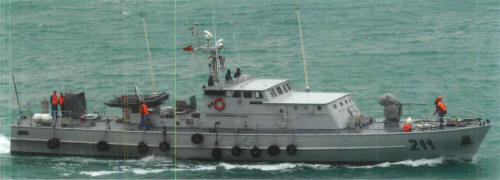

El Kaced 2013
Project history
French P32 design, sister-ships of naval El Wacil class. Customs.
Modernizations
None.
Naval service
No significant events.
