KRK small landing ship (1990/2006)

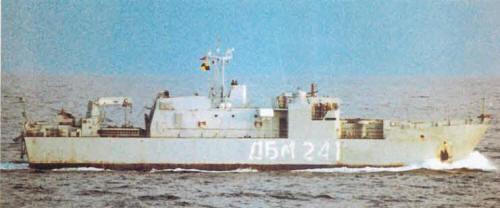

Krk 1998
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Krk (ex-Крк [Krk]) | 241 | BSO, Split, Yugoslavia | 1990 // 5.2006 | retired late 2000s |
Technical data
| Displacement standard, t | 700 |
|---|---|
| Displacement full, t | 880 |
| Length, m | 43.9 pp 49.7 oa |
| Breadth, m | 10.2 |
| Draught, m | 2.60 max |
| No of shafts | 2 |
| Machinery | 2 Burmeister & Wain Alpha 10V23L-VO diesels |
| Power, h. p. | 3100 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(12) |
| Armament | 2 x 2 - 30/71 AK-230, 1 x 4 - 20/90 M-75, 94 mines (SAG-1) instead of cargo |
| Military load | 300 troops, 4 tanks or 7 APC or 460t cargo |
| Electronic equipment | Decca 1290A radar |
| Complement | 33 |
Standard scale images
Krk 2000
Graphics
Krk 1998
Project history
Ro-ro design. Can be used as a minelayer. Had bow and stern ramps with continuous covered vehicle deck.
Modernizations
None.
Naval service
No significant events.
