EAN MARA missile corvettes (1981-1985)





Tariq Ibn Ziyad 1991

Ships


Name No Yard No Builder Laid down Launched Comp Fate
عين مرة [Ean Mara] (ex-МРК-9 [MRK-9]), 1991- طارق ابن زياد [Tariq Ibn Ziyad] 416 203 Vympel, Rybinsk, USSR 21.4.1979 10.1.1981 26.5.1981 // 10.1981 in service (2019)
عين الغزالى [Ean Al Gazala] (ex-МРК-24 [MRK-24]) 417 205 Vympel, Rybinsk, USSR 20.2.1981 26.3.1982 31.5.1982 // 2.1983 non-operational 2011
عين زارا [Ean Zaara] (ex-МРК-25 [MRK-25]) 418 206 Vympel, Rybinsk, USSR 27.5.1981 21.7.1982 31.5.1983 // 2.1983 sunk 19.5.2011
عين زقوت [Ean Zaquit] (ex-МРК-15 [MRK-15]) 419 207 Vympel, Rybinsk, USSR 25.3.1983 31.3.1984 10.9.1984 // 9.1985 sunk 24.3.1986


Technical data


Displacement standard, t

560

Displacement full, t

700

Length, m

59.3

Breadth, m

11.8

Draught, m

2.74

No of shafts

3

Machinery

3 M-507 diesels

Power, h. p.

25800

Max speed, kts

34

Fuel, t

diesel oil

Endurance, nm(kts)

2500(12)

Armament

2 x 2 P-20 Termit SSM (4 P-20), 1 x 2 Osa-M SAM (20 9M33), 1 x 2 - 57/50 AK-725

Electronic equipment

Rangout-E, 4R-33, MR-103 Bars, Don radars, 2 PK-16 decoy RL

Complement

49



Standard scale images

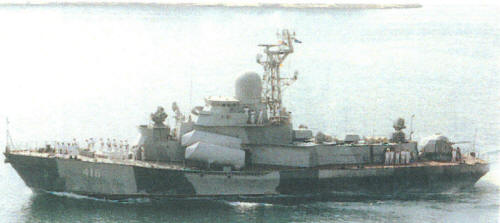

<i>Ean Mara </i>1990
Ean Mara 1990


Graphics


<i>Tariq Ibn Ziyad </i>1991
Tariq Ibn Ziyad 1991


Project history

Soviet export project 1234E small missile ships.

Modernizations

None.

Naval service

Ean Mara was damaged by USN 6th fleet 24.3.1986 in the Golf of Syrth but was repaired; she was badly damaged (as Tariq Ibn Ziyad) again by coastal artillery of anti-Kadhafi islamists 3.11.2014 at Benghazi, ship fired and sank but later salvaged and repaired. Real operational status (2019) is uncertain. Ean Al Gazala was damaged by NATO air attack 19.5.2011, never repaired and used for spare parts. Ean Zaara was sunk by British aircraft 19.5.2011 at Misrata. Ean Zaquit was sunk by US aircraft 24.3.1986 off Benghazi.
