SOLGAE 611 air-cushion landing craft (1989)

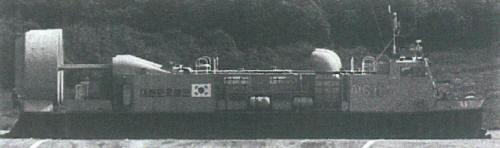

Solgae 611 1997
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 솔개 611 [Solgae 611] | 611 | Korea Tacoma, Pusan | 9.6.1989 | 29.12.1989 | stricken 6.2005 |
Technical data
| Displacement standard, t | 80 |
|---|---|
| Displacement full, t | 182 |
| Length, m | 24.7 hull 26.8 oa |
| Breadth, m | 13.1 hull 14.3 oa |
| Draught, m | 0.9 at rest |
| No of shafts | 2 air propellers + 4 lift fans |
| Machinery | 4 Avco TF-40B gas turbines |
| Power, h. p. | 15820 |
| Max speed, kts | 40 loaded 54 light |
| Fuel, t | gas turbine oil 6.2 |
| Endurance, nm(kts) | 300(35) loaded |
| Armament | 2 x 1 - 12.7/90 |
| Military load | 60 t cargo, 25 troops |
| Electronic equipment | radar |
| Complement | 5 |
Standard scale images
Solgae 611 2000
Graphics
Solgae 611 1997
Project history
USN LCAC design with a slightly modified pilothouse arrangement. Bow and stern ramps.
Modernizations
None.
Naval service
No significant events.
