1970

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
(i)			North Korea			1981-90	stricken early 2000s?
(ii)			North Korea			1981-90	stricken early 2000s?
(iii)			North Korea			1981-90	stricken early 2000s?
(iv)			North Korea			1981-90	stricken early 2000s?
(v)			North Korea			1981-90	in service (2019)?
(vi)			North Korea			1981-90	in service (2019)?
(vii)			North Korea			1981-90	in service (2019)?
(viii)			North Korea			1981-90	in service (2019)?
(ix)			North Korea			1981-90	in service (2019)?
(x)			North Korea			1981-90	in service (2019)?
(xi)			North Korea			1981-90	in service (2019)?
(xii)			North Korea			1981-90	in service (2019)?
(xiii)			North Korea			1993	in service (2019)?
(xiv)			North Korea			1993	in service (2019)?

Technical data

Displacement standard, t
Displacement full, t	220
Length, m	43.0
Breadth, m	7.50
Draught, m	1.70
No of shafts	3
Machinery	3 M-503A diesels
Power, h. p.	12000
Max speed, kts	34
Fuel, t	diesel oil
Endurance, nm(kts)	600(30)
Armament	4 x 1 P-15 SSM (4 P-15), 2 x 2 - 30/71 AK-230
Electronic equipment	MR-101 Rangout, MR-104 Rys' radars
Complement	30

Standard scale images

Graphics

Project history

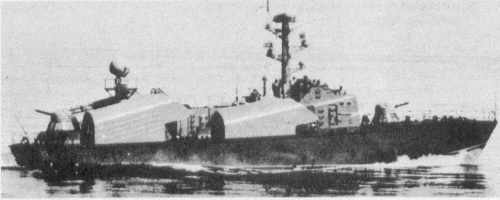

North Korean version of Soviet project 205.

Modernizations

none

Naval service

No significant events.
