1-GO 3 class torpedo boats (1880)

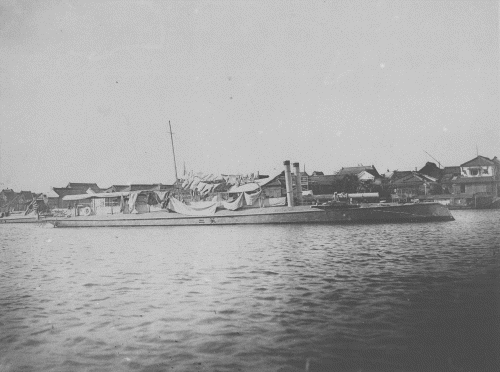

  No 2   Many thanks to Alexandr Isaenko for information provided

Ships


Names Builders Commissioned Losses Transfers Discarding

第1水雷艇 - 第4水雷艇 [1-go - 4-go]

Yarrow, Poplar, UK: 1-go - 4-go

1880: 1-go - 4-go

none

none

1909-1910: 1-go - 4-go


Technical data


Displacement normal, t

40

Displacement full, t
Length, m

29.4 pp 30.5 wl

Breadth, m

3.68

Draught, m

0.99

No of shafts

1

Machinery

1 HC, 1 locomotive boiler

Power, h. p.

620

Max speed, kts

22

Fuel, t

coal

Endurance, nm(kts)
Armament

2 x 1 - 37/20 1pdr Hotchkiss Mk I, 2 - 350 TT (bow), 1 x 1 - 350 TT

Complement





Graphics


  <i>No 2</i>   <i>Many thanks to Alexandr Isaenko for information provided</i>
  No 2   Many thanks to Alexandr Isaenko for information provided


Project history

Designed by Sir Edward Reed on the basis of RN 100ft class.

Modernizations

None.

Naval service

No significant events.
