NAMIE 1 minesweeping drones (1998-1999)
Namie 2 2000
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Namie 1-6 |
Karlskronavarvet, Karlskrona, Sweden: Namie 1-6 |
1998: Namie 1-4 1999: Namie 5, 6 |
none |
none |
in service (2019): Namie 1-6 |
Technical data
| Displacement standard, t | 15 |
|---|---|
| Displacement full, t | 20 |
| Length, m | 18.0 |
| Breadth, m | 6.10 |
| Draught, m | 0.70 hull 1.60 propellers |
| No of shafts | 1 Schottel schrouded propeller |
| Machinery | 1 Volvo-Penta TAMD 70D diesel |
| Power, h. p. | 210 |
| Max speed, kts | 8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 330(7) |
| Armament | magnetic and acoustic minesweeping gear |
| Electronic equipment | none |
| Complement | 0 / 3 |
Graphics

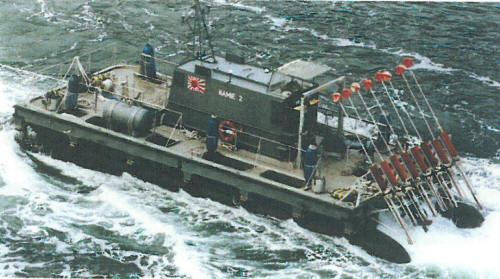

Namie 2 2000

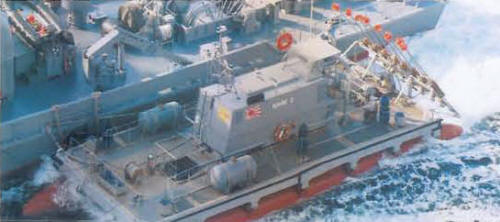

Namie 2 2008
Project history
Two were delivered to Japan in February 1998, with two others ordered in April 1998 and delivered 10.2.1999, and two more delivered late 1999. Are controlled two-each by MCLs. The catamarans also automatically lay eight swept-channel danbuoy markers. SAM means Self-propelled Acoustic and Magnetic.
Modernizations
None.
Naval service
No significant events.
