Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
まや [Maya]	DDG179		Japan Marine United, Yokohama	17.4.2017	30.7.2018	2020	building (2019)
	DDG180		Japan Marine United, Yokohama	23.1.2018	2019	2021	building (2019)

Technical data

Displacement standard, t	8200
Displacement full, t	11400
Length, m	169.9 oa
Breadth, m	21.0
Draught, m	6.20 hull
No of shafts	2
Machinery	COGLAG: 2 General Electric LM-2500 gas turbines, 2 gas turbine generators, 2 electric motors
Power, h. p.	100000
Max speed, kts	30
Fuel, t	gas turbine oil
Endurance, nm(kts)	4500(20)
Armament	2 x 4 SSM-1B SSM (8 SSM-1B), (1 x 64 + 1 x 32) Standard SM-2MR SAM / ASROC VLA ASuR Mk 41 (VLS, 96 RIM-66 / x4 RIM-162 / RUM-139), 1 x 1 - 127/54 Mk 45 mod. 4, 2 x 6 - 20/76 Mk 15 Phalanx Block 1B, 2 x 3 - 324 HOS-302 TT, 2 helicopters (SH-60J)
Electronic equipment	SPY-1D(v), OPS-28E, 3x SPG-62, FCS-2-21, OPS-20, 2x Mk 90 radars, Mk 46 e/o director, SQQ-89(v) sonar, NOLQ-2B, OLT-3 ECM suites, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, OYQ-6 CCS
Complement	307

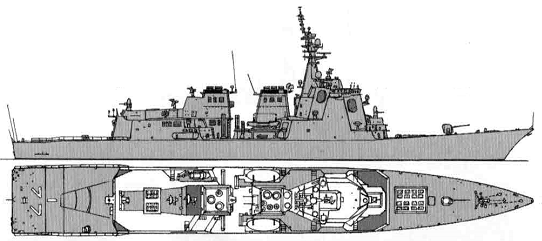

Standard scale images

Project history

Advanced Atago with new propulsion plant and new sonar suite.

Modernizations

None.

Naval service

No significant events.
