IMPAVIDO missile destroyers (1963 - 1964)





Intrepido 1975

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Impavido D570   CNR, Riva Trigoso 10.6.1957 25.5.1962 16.11.1963 stricken 6.1992
Intrepido D571   Ansaldo, Genova 16.5.1959 21.10.1962 28.7.1964 stricken 8.1991


Technical data


Displacement standard, t

3201

Displacement full, t

3990

Length, m

131.3

Breadth, m

13.7

Draught, m

4.40

No of shafts

2

Machinery

2 sets Tosi geared steam turbines, 4 Foster Wheeler boilers

Power, h. p.

70000

Max speed, kts

33

Fuel, t

oil 650

Endurance, nm(kts)3300(20)
Armament

1 x 1 Tartar SAM (40 RIM-24), 1 x 2 -127/38 Mk 38, 4 x 1 - 76/62 MMI, 2 x 3 - 324 TT, helicopter deck

Electronic equipment

SPS-12, SPS-39, SPQ-2, 2x SPG-51, Mk 25, 4x SPG-34 radars, SQS-23 sonar

Complement

340



Standard scale images

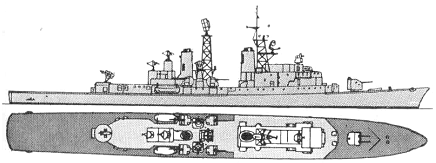

<i>Impavido </i>1975
Impavido 1975

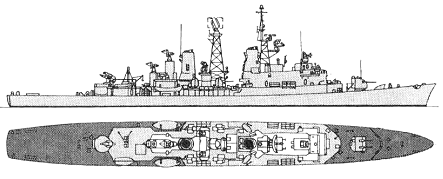

<i>Impavido </i>1990
Impavido 1990

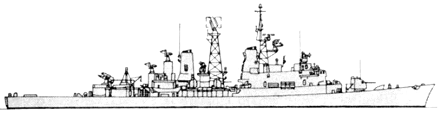

<i>Impavido </i>1965
Impavido 1965


Graphics

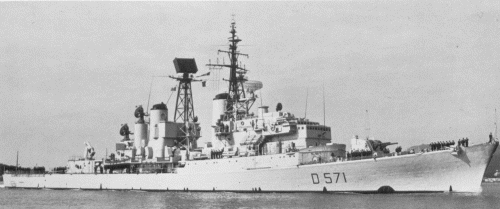

<i>Intrepido </i>1975
Intrepido 1975


Project history

These were essentially Impetuosos with the after twin 127mm/38 replaced by a Tartar missile launcher, in rough analogy with the way the US Charles F. Adams class was derived from the Forrest Sherman class. They also had the much longer-range sonar of the US ships (the Impetuosos had modernized WWII high-frequency sets), and they lack the ASW mortar of the earlier design. Single 76mm/62s (two on each side) with Italian directors replaced the 40mm guns of the earlier ships, the Italian Navy having decided in about 1958 that the 40mm could not deal adequately with modem aircraft. Consideration was given to installing 135mm guns (as on the modernized Giuseppe Garibaldi) instead of US-type 127mm/38s. These ships were ordered in, respectively, 1957 and 1959.

Modernizations

(1974-1975), Intrepido; (1976-1977), Impavido: - 1 x 1 Tartar SAM, Mk 25, SPS-39, 4x SPG-34 radars; + 1 x 1 Standard SM-1MR SAM (40 RIM-66), SPS-39A, SPN-748, 3x RTN-10X radars, ECM suite, 2 SCLAR decoy launchers
