FOLGORE destroyers (1932)

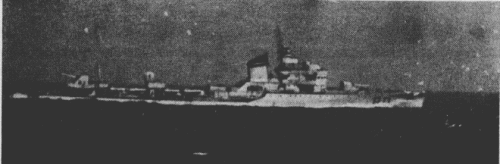

Baleno 1940
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Baleno | BO | CNQ, Fiume | 10.1929 | 22.3.1931 | 6.1932 | foundered 17.4.1941 | |
| Folgore | FG | OCP, Napoli | 1.1930 | 26.4.1931 | 7.1932 | sunk 2.12.1942 | |
| Fulmine | FN, FL | CNQ, Fiume | 10.1929 | 2.8.1931 | 9.1932 | sunk 9.11.1941 | |
| Lampo | LA, LP | OCP, Napoli | 1.1930 | 26.7.1931 | 8.1932 | sunk 30.4.1943 |
Technical data
| Displacement standard, t | 1450 |
|---|---|
| Displacement full, t | 2100 |
| Length, m | 94.3 wl 96.1 oa |
| Breadth, m | 9.20 |
| Draught, m | 3.30 |
| No of shafts | 2 |
| Machinery | 2 sets Beluzzo geared steam turbines, 3 Thornycroft boilers |
| Power, h. p. | 44000 |
| Max speed, kts | 38 |
| Fuel, t | oil 510 |
| Endurance, nm(kts) | 3600(12) |
| Armament | 2 x 2 - 120/50 Ansaldo 1926, 2 x 1 - 40/39 Vickers-Terni 1917, 2 x 2 - 13.2/76, 2 x 3 - 533 TT, 2 DCT, 54 mines |
| Electronic equipment | hydrophone |
| Complement | 156 - 185 |
Standard scale images
Baleno 1940
Graphics
Baleno 1940
Project history
Folgore class sometimes was called as 2nd series of Dardo class. Attempt to raise a speed at the expense of decrease in a hull beam to 9.2 m, as well as on Turbine, served by the sample for Dardo. For speed slight increase it have forcedly paid by significant decrease in the endurance, besides, the insufficient stability of previous class (Folgore) was aggravated with a smaller hull beam. It was necessary, as well as by the ships of 1st series, to substitute fuel with water and to stow about 100t of dry ballast. Standard displacement has increased from 1220 to 1450t, speed has fallen approximately to 31-32kts.
Modernizations
1939 - 1940, all: - 2 x 1 - 40/39, 2 x 2 - 13.2/76; + (5 - 6) x 1 - 20/65 Breda 1939/1940
1942, Folgore, Lampo: - 1 x 3 - 533 TT; + 2 x 1 - 37/54 Breda 1939
Naval service
Baleno 16.4.1941 was hard damaged by gunfire of British destroyers Nubian, Mohawk, Jervis and Janus in the central Mediterranean, and ran aground, 17.4.1941 capsized and sunk. Fulmine 9.11.1941 was sunk by British cruiser Aurora and destroyers Lively and Lance in 130nm W off Siracuzes. Folgore 2.12.1942 was sunk by gunfire of British cruisers Aurora, Argonaut and Sirius, destroyer Quentin and Canadian Quiberon in the Sicilian channel. Lampo 30.4.1943 was hard damaged by American aircraft at coast of Tunisia, abandoned and has sunk.
