FASANA destroyers (1913 - 1918 / 1920)

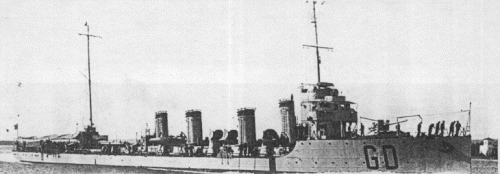

Grado 1932
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|---|
| Fasana (ex-Tátra) | Danubius, Porto Rè, Austria-Hungary | 10.1911 | 5.11.1912 | 10.1913 // 9.1920 | stricken 7.1923 | Fasana class | ||
| Muggia (ex-Csepel) | MG | Danubius, Porto Rè, Austria-Hungary | 1.1912 | 30.12.1912 | 12.1913 // 9.1920 | wrecked 25.3.1929 | Fasana class | |
| Pola (ex-Orjen), 4.1931- Zenson | PA, ZS | Danubius, Porto Rè, Austria-Hungary | 9.1912 | 26.8.1913 | 7.1914 // 9.1920 | stricken 5.1937 | Fasana class | |
| Zenson (ex-Balaton) | ZS | Danubius, Porto Rè, Austria-Hungary | 11.1911 | 16.11.1912 | 11.1913 // 9.1920 | stricken 7.1923 | Fasana class | |
| Cortelazzo (ex-Lika) | CZ | Danubius, Porto Rè, Austria-Hungary | 8.1916 | 8.5.1917 | 9.1917 // 9.1920 | stricken 1.1939 | Grado class | |
| Grado (ex-Triglav) | GD | Danubius, Porto Rè, Austria-Hungary | 8.1916 | 24.2.1917 | 7.1917 // 9.1920 | stricken 9.1937 | Grado class | |
| Monfalcone (ex-Uzsok) | MF | Danubius, Porto Rè, Austria-Hungary | 9.1916 | 16.9.1917 | 1.1918 // 9.1920 | stricken 1.1939 | Grado class |
Technical data
| Displacement normal, t | Fasana class: 850 Grado class: 880 |
|---|---|
| Displacement full, t | Fasana class: 1000 Grado class: 1045 |
| Length, m | Fasana class: 83.5 oa Grado class: 84.6 wl 85.4 oa |
| Breadth, m | 7.80 |
| Draught, m | Fasana class: 3.00 deep load (by propellers) Grado class: 2.40 deep load (by hull) |
| No of shafts | 2 |
| Machinery | 2 AEG-Curtiss steam turbines, 6 Yarrow boilers |
| Power, h. p. | Fasana class: 20640 Grado class: 22360 |
| Max speed, kts | 32.6 |
| Fuel, t | coal 131 + oil |
| Endurance, nm(kts) | 1600(12) |
| Armament | Fasana class: 2 x 1 - 100/47 G. L/50 K.10, 6 x 1 - 66/42 G. L/45 BAG, 2 x 2 - 450 TT Grado class: 2 x 1 - 100/47 G. L/50 K.10, 6 x 1 - 66/42 G. L/45 BAG, 1 x 1 - 8.80, 2 x 2 - 450 TT |
| Complement | Fasana class: 105 Grado class: 114 |
Standard scale images
Grado 1920
Graphics
Grado 1932
Project history
Ex-Austrian destroyers transferred by war reparations. Fasana and Zenson were not refitted for commission of Italian navy. All survived were reclassified as torpedo boats in October 1929.
Modernizations
1920 - 1922, before commission all were armed with 2 x 1 - 100/47 G. L/50 K.10, 6 x 1 - 66/42 G. L/45 BAG, 2 x 1 - 6.5/80, 2 x 2 - 450 TT
Naval service
No significant events.
