66S torpedo boats (1888)





67S

Ships


Names Builders Completed Losses Transfers Discarding

66S; 67S

Guppy, Napoli: 66S, 67S

1888: 66S, 67S

none

none

1905: 66S, 67S



Technical data


Displacement normal, t

78

Displacement full, t
Length, m

39.0 pp 39.8 oa

Breadth, m

4.80

Draught, m

2.01

No of shafts

1

Machinery

1 VDE, 1 locomotive boiler

Power, h. p.

902 - 1080

Max speed, kts

21 - 22

Fuel, t

coal

Endurance, nm(kts)
Armament

2 x 1 - 37/20 H corto, 2 - 350 TT (bow)

Complement

17



Standard scale images


sister-boat <i>99S </i>1887
sister-boat 99S 1887


Graphics

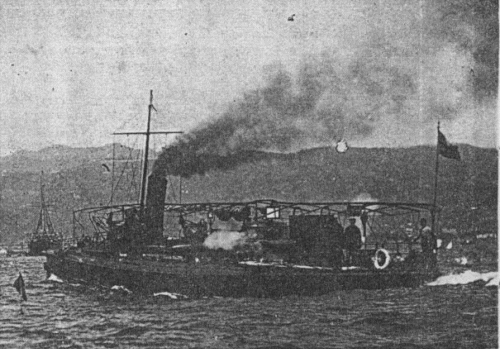

<i>67S</i>
67S


Project history

Second class TBs.

Modernizations

None.

Naval service

67S was used in experiments with training TTs.
