40PN torpedo boats (1916 - 1918)
60OL 1930
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 40PN | Pattison, Napoli | 8.1915 | 25.3.1916 | 5.1916 | stricken 4.1927 | ||
| 41PN | Pattison, Napoli | 8.1915 | 12.5.1916 | 6.1916 | stricken 2.1932 | ||
| 42PN | Pattison, Napoli | 8.1915 | 7.6.1916 | 7.1916 | stricken 11.1930 | ||
| 43PN | Pattison, Napoli | 8.1915 | 15.7.1916 | 8.1916 | stricken 6.1930 | ||
| 44PN | Pattison, Napoli | 8.1915 | 30.8.1916 | 10.1916 | stricken 6.1930 | ||
| 45PN | Pattison, Napoli | 8.1915 | 16.9.1916 | 10.1916 | stricken 2.1932 | ||
| 46OS | Odero, Sestri Ponente | 8.1915 | 17.3.1916 | 4.1916 | stricken 11.1930 | ||
| 47OS | Odero, Sestri Ponente | 8.1915 | 27.4.1916 | 5.1916 | stricken 2.1932 | ||
| 48OS | Odero, Sestri Ponente | 8.1915 | 17.4.1916 | 5.1916 | stricken 3.1931 | ||
| 49OS | Odero, Sestri Ponente | 8.1915 | 17.6.1916 | 7.1916 | stricken 2.1932 | ||
| 50OS | Odero, Sestri Ponente | 8.1915 | 16.5.1916 | 5.1916 | stricken 2.1932 | ||
| 51OS | Odero, Sestri Ponente | 8.1915 | 1.7.1916 | 7.1916 | stricken 2.1932 | ||
| 52AS | Ansaldo, Sestri Ponente | 9.1915 | 1.7.1916 | 8.1916 | stricken 2.1932 | ||
| 53AS | Ansaldo, Sestri Ponente | 9.1915 | 29.7.1916 | 9.1916 | stricken 2.1932 | ||
| 54AS | Ansaldo, Sestri Ponente | 9.1915 | 27.8.1916 | 9.1916 | stricken 2.1932 | ||
| 55AS | Ansaldo, Sestri Ponente | 9.1915 | 17.9.1916 | 10.1916 | stricken 2.1932 | ||
| 56AS | Ansaldo, Sestri Ponente | 9.1915 | 11.10.1916 | 11.1916 | stricken 6.1934 | ||
| 57AS | Ansaldo, Sestri Ponente | 9.1915 | 13.11.1916 | 12.1916 | stricken 9.1934 | ||
| 58OL | Orlando, Livorno | 11.1915 | 9.4.1916 | 5.1916 | stricken 2.1932 | ||
| 59OL | Orlando, Livorno | 11.1915 | 28.5.1916 | 7.1916 | stricken 5.1931 | ||
| 60OL | Orlando, Livorno | 11.1915 | 25.6.1916 | 7.1916 | stricken 2.1932 | ||
| 61OL | Orlando, Livorno | 11.1915 | 30.7.1916 | 9.1916 | stricken 2.1932 | ||
| 62OL | Orlando, Livorno | 11.1915 | 27.8.1916 | 9.1916 | stricken 2.1932 | ||
| 63OL | Orlando, Livorno | 12.1915 | 16.2.1916 | 10.1916 | stricken 2.1932 | ||
| 64PN | Pattison, Napoli | 9.1916 | 19.11.1917 | 12.1917 | stricken 2.1932 | ||
| 65PN | Pattison, Napoli | 9.1916 | 22.12.1917 | 1.1918 | stricken 2.1932 | ||
| 66PN, 1.1921- 70PN | Pattison, Napoli | 11.1916 | 30.3.1918 | 5.1918 | stricken 2.1932 | ||
| 67PN | Pattison, Napoli | 11.1916 | 8.6.1918 | 6.1918 | stricken 9.1929 | ||
| 68PN, 1.1921- 71PN | Pattison, Napoli | 11.1916 | 20.7.1918 | 8.1918 | stricken 2.1932 | ||
| 69PN | Pattison, Napoli | 12.1916 | 25.9.1918 | 10.1918 | stricken 2.1932 | ||
| 76CP (ex-70CP) | CNR, Palermo | 6.1918 | --- | --- | cancelled 1920 | ||
| 77CP (ex-71CP) | CNR, Palermo | 6.1918 | --- | --- | cancelled 1920 | ||
| 78CP (ex-72CP) | CNR, Palermo | 8.1919 | --- | --- | cancelled 1920 | ||
| 79CP (ex-73CP) | CNR, Palermo | 8.1919 | --- | --- | cancelled 1920 |
Technical data
| Displacement normal, t | 129 |
|---|---|
| Displacement full, t | 157 - 168 |
| Length, m | 42.5 |
| Breadth, m | 4.60 |
| Draught, m | 1.59 |
| No of shafts | 2 |
| Machinery | 2 VTE, 2 Thornycroft boilers |
| Power, h. p. | 2700 |
| Max speed, kts | 27 |
| Fuel, t | oil 23 |
| Endurance, nm(kts) | 170(27) |
| Armament | 40PN - 45PN, 53AS, 55AS - 57AS, 61OL - 63OL: 2 x 1 - 76/30 A1914, 1 x 2 - 450 TT, 10 mines 46OS - 51OS, 52AS, 54AS, 58OL - 60OL: 2 x 1 - 76/30 A1914, 1 x 1 - 37/43 V1914, 1 x 2 - 450 TT, 10 mines 64PN - 69PN: 2 x 1 - 76/30 A1914, 1 x 1 - 6.5/80, 1 x 2 - 450 TT, 10 mines |
| Complement | 30 |
Standard scale images
40PN 1916
Graphics

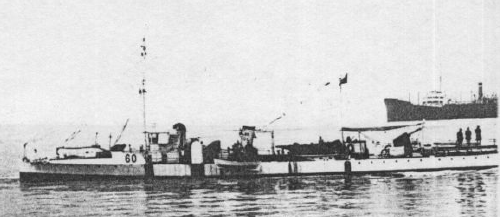

60OL 1930
Project history
Torpedo boats, as a whole were considered rather successful (with reference to Adriactic Sea theatre) ships.
Modernizations
None.
Naval service
No significant events.
