V5001 interceptor craft (1993 - 1997)
V5006 2001
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
V5001-5020 |
Intermarine, Sarzana: V5001-5020 |
1993-1997: V5001-5020 |
none |
none |
in service (2019): V5001-5020 |
Technical data
| Displacement standard, t | 20 |
|---|---|
| Displacement full, t | 27 |
| Length, m | 16.2 |
| Breadth, m | 4.50 |
| Draught, m | 1.00 |
| No of shafts | 2 waterjets |
| Machinery | 2 Isotta-Fraschini ID36 SS8V diesels |
| Power, h. p. | 2500 |
| Max speed, kts | 54 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 150(35) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | BX-732 radar |
| Complement | 5 |
Graphics

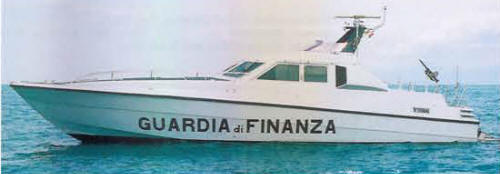

V5006 2001
Project history
GRP construction. Super-Drago design.
Modernizations
None.
Naval service
No significant events.
