CP228 patrol boats (1965-1966)
CP230 1999
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CP228 - 230 |
Navaltecnica, Anzio: CP228 - 230 |
1965 - 1966: CP228 - 230 |
none |
none |
2000: CP228 2001: CP229 2002: CP230 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 15 |
| Length, m | 13.4 |
| Breadth, m | 4.75 |
| Draught, m | 1.26 |
| No of shafts | 2 |
| Machinery | 2 AIFO 8281 SRM diesels |
| Power, h. p. | 900 |
| Max speed, kts | 22 - 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(20) |
| Armament | none |
| Electronic equipment | none |
| Complement | 7 |
Graphics

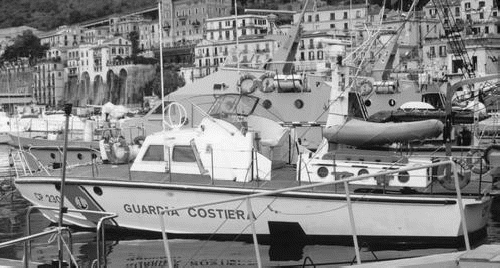

CP230 1999
Project history
Patrol launches of Coast Guard.
Modernizations
None.
Naval service
No significant events.
