PETREL patrol boats (1986-1987)
Auk 1999
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PL11 Petrel PL12 Auk PL13 Gull PL14 Tern PL15 Skua PL16 Puffin PL17 Gannet |
Chung Wah SB: PL11-17 |
1986-1987: PL11-17 |
None |
China, 1997: PL11-17 (PL11-17) |
none |
Technical data
| Displacement standard, t | 36 |
|---|---|
| Displacement full, t | |
| Length, m | 16.0 |
| Breadth, m | 4.60 |
| Draught, m | 1.50 |
| No of shafts | 2 waterjets |
| Machinery | 2 Cummins NTA855M diesels |
| Power, h. p. | 700 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | Decca radar |
| Complement | 7 |
Graphics

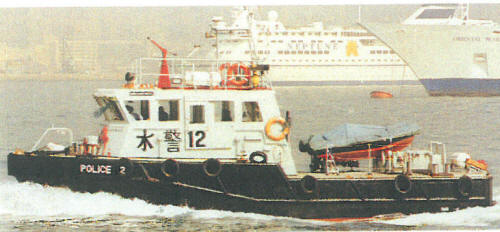

Auk 1999
Project history
Had water monitor for firefighting.
Modernizations
None.
Naval service
No significant events.
