NAVYPEDIA


1969 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
L91	600	96	Peenewerft, Wolgast			5/1960	stricken 11.1976
L02	602	114	Peenewerft, Wolgast			6/1962	stricken 11.1976
L03	603	115	Peenewerft, Wolgast			7/1962	stricken 11.1976
L04, 3.1967- Neuendorf	604	116	Peenewerft, Wolgast			7/1962	stricken 11.1976
L05	605	117	Peenewerft, Wolgast			7/1962	stricken 10.1977
L06	606	118	Peenewerft, Wolgast			7/1962	stricken 11.1976
L07, 3.1967- Gerhard Prenzler	607	119	Peenewerft, Wolgast			10/1962	stricken 10.1977
L08, 3.1967- Rolf Peters	608	120	Peenewerft, Wolgast			10/1962	transport 10.1977
L09, 3.1967- Heinz Wilkowski	609	121	Peenewerft, Wolgast			11/1962	stricken 10.1977
L10	610	122	Peenewerft, Wolgast			11/1962	stricken 10.1977
	611	123	Peenewerft, Wolgast			12/1962	stricken 10.1977
	612	124	Peenewerft, Wolgast			12/1962	stricken 10.1977

Technical data

Displacement standard, t	180
Displacement full, t	285
Length, m	41.1
Breadth, m	6.90
Draught, m	1.10
No of shafts	2
Machinery	4 6NVD26A diesels
Power, h. p.	1000
Max speed, kts	10
Fuel, t	diesel oil
Endurance, nm(kts)	1000(8)
Armament	2 x 2 - 25/80 2M-3
Military load	2 medium tanks or 100 t of cargo
Electronic equipment	TSR-222 radar
Complement	15

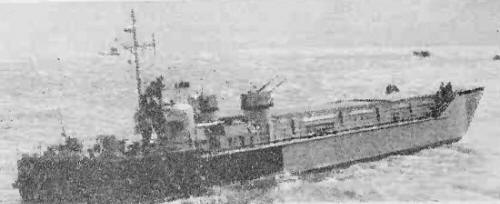

Standard scale images

Graphics

Project history

Small landing craft, project 46.

Modernizations

None.

Naval service

: No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
