ZICK torpedo boats (1919 - 1920 / 1940)

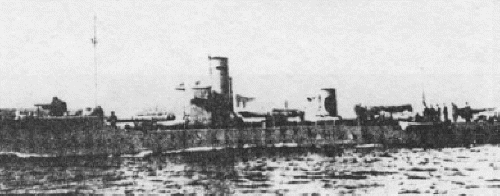

Stegg

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Zick (ex-Trygg) V5501, 9.1943- V5506 109 Marinens Hovedverft, Horten, Norway 1917 31.5.1919 1920 // 8.1940 sunk 23.10.1944
Zack (ex-Snøgg) 5.1942- V5504, 5.1942- V5502 110 Marinens Hovedverft, Horten, Norway 1917 2.9.1920 1921 // 5.1940 wrecked 1.9.1943


Technical data


Displacement normal, t

220
Displacement full, t256
Length, m

53.0
Breadth, m

5.50
Draught, m

2.00
No of shafts

2
Machinery

2 VTE, 2 boilers
Power, h. p.

3600
Max speed, kts

17
Fuel, t

oil 30
Endurance, nm(kts)
Armament

1 x 1 - 76/28 Bofors, 1 x 1 - 20/65 C/38, 2 x 2 - 450 TT, 2 DCT (8 - 10)
Complement

37


Graphics


<i> Stegg</i>
Stegg


Project history ex-Norwegian torpedo boats captured 25.4.1940 at Isfjorden and 4.5.1940 at Florø accordingly.

ex-Norwegian torpedo boats captured 25.4.1940 at Isfjorden and 4.5.1940 at Florø accordingly.

Modernizations

1941 - 1942, both: - 1 x 2 - 450 TT; + 1 x 1 - 20/65 C/38

Naval service

Zick was sunk by Allied bombers 23.10.1944 in Hjeltefjord and Zack ran aground off Bergen 1.9.1943.
