K4 gunboat (1943)


Ships


Name No Yard No Builder Laid down Launched Comp Fate
K4 Lorelei (ex-Artevelde)   686 Cockerill, Antwerp, Belgium / Wilton-Fijenoord, Schiedam 1939 28.8.1940 4.1943 surrendered 5.1945, to Belgium 6.1945 (Artevelde)


Technical data


Displacement standard, t

1640

Displacement full, t2306
Length, m

94.8 wl 98.5 oa

Breadth, m

10.5

Draught, m

3.3 normal 3.80 deep load

No of shafts

2

Machinery

2 sets Parsons-Rateau geared steam turbines, 2 Babcock & Wilcox boilers

Power, h. p.

21700

Max speed, kts

28.5

Fuel, t

oil 680

Endurance, nm(kts)1200(19)
Armament

3 x 1 - 105/42 SK C/32, 1 x 2 - 37/80 SK C/30, 2 x 1 - 37/80 SK C/30, 2 x 4 - 20/65 C/38, 2 x 1 - 20/65 C/38, 120 mines, mechanical minesweeping gear

Complement

180



Standard scale images

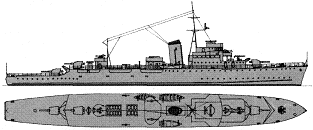

<i>K4 Lorelei</i> 1943
K4 Lorelei 1943


Project history

Former Belgian fishery protection vessel and royal yacht Artevelde. Ship was captured on a slipway in Antwerp, renamed Lorelei and 28.8.1940 renamed again as K4. K4 was launched under German control and towed off to the Netherlands for outfitting, during which time she received German armament (designed armament consisted from 2 twin 102mm guns and 1 twin 40mm AA MG). Machinery had British origin: Parsons turbine units and Babcock & Wilcox boilers with raised steam parameters (32atm, 400°C). Ship differed as seaworthy and fast, but had no any protection (except 40mm gun shields) and had poor stability. The Basic purpose of ship was anti-air defence of convoys.

Modernizations

till 1945: - 2 x 1 - 37/80, 2 x 1 - 20/65; + 2 x 1 - 40/56 FlaK 28, 1 x 4 - 20/65 C/38, 2 x 2 - 20/65 C/38.

Naval service

After war K4 was returned to Belgium where served under former name till 1954.
