V170 destroyers


Ships


Name No Yard No Builder Laid down Launched Comp Fate
V170   568 Vulcan, Stettin 1918 --- --- BU incomplete 1919
V171   569 Vulcan, Stettin 1918 --- --- BU incomplete 1919
V172   570 Vulcan, Stettin 1918 --- --- BU incomplete 1919
V173   571 Vulcan, Stettin 1918 --- --- BU incomplete 1919
V174   572 Vulcan, Stettin 1918 --- --- BU incomplete 1919
V175   573 Vulcan, Stettin 1918 --- --- BU incomplete 1919


Technical data


Displacement normal, t

1268

Displacement full, t

1563

Length, m

92.5 oa 90.8 wl

Breadth, m

9.10

Draught, m

3.60

No of shafts

2

Machinery

2 sets AEG-Vulcan geared steam turbines, 3 Marine boilers

Power, h. p.

36000

Max speed, kts

35

Fuel, t

oil 330

Endurance, nm(kts)

2000(20)

Armament

4 x 1 - 105/42 Utof L/45 C/16, 2 x 2 - 500 TT, 2 x 1 - 500 TT (8), 40 mines

Complement

117

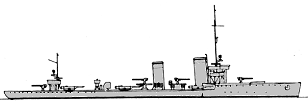

Standard scale images


<i>V170</i>
V170


Project history

Large destroyers of the 1917 design type. They were the first German destroyers to have geared turbines. The boats were in the first stages of construction when the war ended; the orders were cancelled. V176, 177, 203-210 were cancelled before were laid down.
