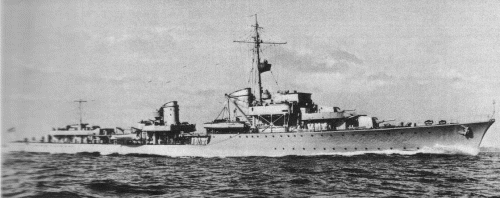

Z20 Karl Galster 1939

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Z17 Diether von Roeder		919	Deschimag, Bremen	9/1936	19.8.1937	8/1938	sunk 13.4.1940
Z18 Hans Lüdemann		920	Deschimag, Bremen	9/1936	1.12.1937	10/1938	sunk 13.4.1940
Z19 Hermann Künne		921	Deschimag, Bremen	10/1936	22.12.1937	1/1939	sunk 13.4.1940
Z20 Karl Galster		922	Deschimag, Bremen	9/1937	15.6.1938	3/1939	surrendered 5.1945, to USSR 2.1946 (Прочный [Prochnyy])
Z21 Wilhelm Heidkamp		923	Deschimag, Bremen	12/1937	2.8.1938	8/1939	sunk 11.4.1940
Z22 Anton Schmitt		924	Deschimag, Bremen	1/1938	20.9.1938	9/1939	sunk 10.4.1940

Technical data

Displacement standard, t	2411
Displacement full, t	3415
Length, m	Z17 - 19: 120.0 wl 123.0 oa Z20 - 22: 120.0 wl 125.1 oa
Breadth, m	11.8
Draught, m	4.50
No of shafts	2
Machinery	2 sets Deschimag geared steam turbines, 6 Wagner boilers
Power, h. p.	70000
Max speed, kts	38.5
Fuel, t	oil 739
Endurance, nm(kts)	2050(19)
Armament	5 x 1 - 128/42 SK C/34, 2 x 2 - 37/80 SK C/30, 6 x 1 - 20/65 C/38, 2 x 4 - 533 TT (16), 4 DCT (18), 60 mines
Electronic equipment	GHG hydrophone
Complement	Z17 - 19, 21, 22: 313 Z20: 330

Standard scale images

Graphics

Project history

At creation of type 1936 destroyers lacks of predecessors have been considered. At the expense of more perfect hull form seaworthiness was improved, and last three ships received clipper (Atlantic) bow, which increased their length on 2m. Having moderated funnels height and lightened amidships superstructure it was possible to decrease top weight. Officially declared displacement was 1811t. Ships were equipped by Wagner boilers (70atm, 460°C). Construction of Deschimag-produced turbine gear units has been improved and it has appeared quite reliable. On trials Diether von Roeder made 40.45kts. The armaments structure repeated type 1934, AA MG arrangement was changed only.

Modernizations

late 1939, all: + S-Gerät sonar

1941, Z20: + 1 x 4 - 20/65 C/38, 3 x 1 - 20/65 C/38

1942, Z20: + FuMO 21 radar

early 1944, Z20: - 4 x 1 - 20/65, presumably FuMO 21 radar; + 2 x 1 - 37/57 FlaK M43, 2 x 2 - 20/65 C/38, presumably FuMO 24, FuMO 63K radars, FuMB 3 Bali, FuMB 4 Sumatra ECM suites

1/1945, Z20: - 2 x 2 - 37/80, 4 x 1 - 20/65; + 2 x 2 - 37/69 FlaK M42

Naval service

Z22 Anton Smitt and Z21 Wilhelm Heidkamp were torpedoed by British destroyer Hardy in harbour of Narvik 10.4.1940: former was sunk at once, latter next day. Z17 Diether von Roeder, Z18 Hans Lüdemann and Z19 Hermann Künne were lost 13.4.1940 in battle against British battleship Warspite and destroyers in Ufut-fiord. Z20 Karl Galster was damaged 3.7.1942 as result of navigating accident in the West-fjord and was under repair 5 months; on reparations she was transferred to the USSR as Prochny, and BU in 1956.
