PRIGNITZ patrol boats (2007-2008)
Prignitz 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
BP61 Prignitz BP62 Uckermark BP63 Altmark BP64 Börde BP65 Rhön 2 |
SET Werft, Genthin: BP61-65 |
2007: BP61-63 2008: BP64, 65 |
None |
None |
in service (2019): BP61-65 |
Technical data
| Displacement standard, t | 38 |
|---|---|
| Displacement full, t | |
| Length, m | 21.0 |
| Breadth, m | 5.20 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 MAN diesels |
| Power, h. p. | 800 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 3 |
Graphics

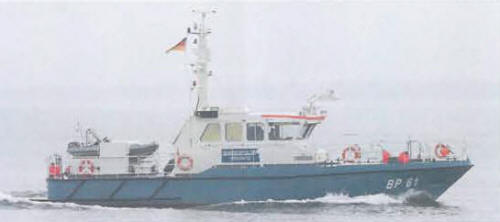

Prignitz 2008
Project history
Replacement for the former GDR boats with the same names.
Modernizations
None.
Naval service
No significant events.
