NEUSTADT large patrol craft (1969-1970)

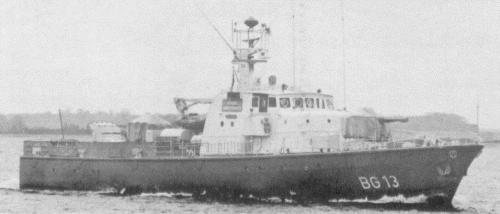

Ueltzen 1978
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Neustadt | BG11 | Lürssen, Vegesack | 11.1968 | 27.2.1969 | 11.1969 | stricken 2004, to Bulgaria (Несебър [Nesebar]) | |
| Bad Bramstedt | BG12 | Lürssen, Vegesack | 1.1969 | 2.4.1969 | 1969 | stricken 2002, to Romania (MAI1102) | |
| Ueltzen | BG13 | Schlichting, Travemünde | 1969 | 1969 | 2.1970 | to Mauritania 3.1990 (ذئبر [Z'Bar]) | |
| Duderstadt | BG14 | Lürssen, Vegesack | 2.1969 | 3.6.1969 | 1970 | stricken 2004, to Bulgaria (Балчик [Balchik]) | |
| Eschwege | BG15 | Lürssen, Vegesack | 3.1969 | 16.9.1969 | 3.1970 | stricken 2003, to Romania (MAI1103) | |
| Alsfeld | BG16 | Lürssen, Vegesack | 5.1969 | 11.11.1969 | 1970 | stricken 2005, to Romania (MAI1104) | |
| Bayreuth | BG17 | Lürssen, Vegesack | 9.1969 | 9.1.1970 | 1970 | stricken 2002, to Romania (General Paraschiv Vasilescu) | |
| Rosenheim | BG18 | Lürssen, Vegesack | 1969 | 1970 | 1970 | stricken 1999, to Bulgaria (Созопол [Sozopol]) |
Technical data
| Displacement standard, t | 191 |
|---|---|
| Displacement full, t | 218 |
| Length, m | 36.0 pp 38.5 oa |
| Breadth, m | 7.00 |
| Draught, m | 2.15 |
| No of shafts | 3 |
| Machinery | 2 Maybach diesels + 1 MWM cruise diesel |
| Power, h. p. | 7200 + 685 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil 15 |
| Endurance, nm(kts) | 450(27) |
| Armament | 2 x 1 - 40/70 Bofors 315 |
| Electronic equipment | ARP 1645 radar |
| Complement | 24 |
Standard scale images
Neustadt 1980
Graphics
Ueltzen 1978
Project history
Large craft built for Board Guard.
Modernizations
1997, all: - 2 x 1 - 40/70; + 2 x 1 - 7.6/90
Naval service
No significant events.
