O`BYRNE submarines (1921)

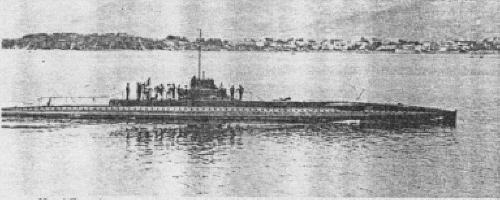

Henry Fournier 1921 Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| O`Byrne | SC5 | Schneider, Chalon-sur-Saône | 4/1917 | 22.5.1919 | 1921 | discarded 7.1935 | |
| Henry Fournier | SC6 | Schneider, Chalon-sur-Saône | 4/1917 | 30.9.1919 | 1921 | discarded 7.1935 | |
| Louis Dupetit-Thouars | SC7 | Schneider, Chalon-sur-Saône | 4/1917 | 5-6/1920 | 1921 | discarded 11.1928 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 342 / 513 |
| Length, m | 52.4 |
| Breadth, m | 4.70 |
| Draught, m | 2.70 |
| No of shafts | 2 |
| Machinery | 2 Schneider-Carels diesels / 2 electric motors |
| Power, h. p. | 1020 / 400 |
| Max speed, kts | 14 / 8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1850(10) / 55(5) |
| Armament | 1 x 1 - 47/50 M1902, 4 - 450 TT (bow, 4) |
| Complement | 25 |
| Diving depth operational, m |
Standard scale images
Henry Fournier 1933
Graphics
Henry Fournier 1921 Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
Requisitioned while building ex-Rumanian submarines. Double-hulled, Laubeuf type.
Modernizations
None.
Naval service
No significant events.
