Mariotte Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

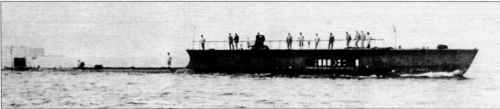

Mariotte	Q074	Q30	Arsenal de Cherbourg	3/1908	2.2.1911	1/1913	sunk 27.7.1918

Technical data

Displacement standard, t
Displacement normal, t	531 / 627
Length, m	64.7
Breadth, m	4.30
Draught, m	3.80
No of shafts	2
Machinery	2 Sautter-Harlé diesels / 2 electric motors
Power, h. p.	1400 / 1000
Max speed, kts	14.3 / 11.7
Fuel, t	diesel oil
Endurance, nm(kts)	1050(10) / 100(5)
Armament	4 - 450 TT (bow), 2 - 450 TC (Drzewiecki drop-collars) (8 totally)
Complement	29
Diving depth operational, m	40

Standard scale images

Graphics

Project history

Authorised under the 1906 programme, this single-hulled submarine was designed by Radiguer and was similar to the Émeraude design. Trials took place between March 1910 and November 1912; she attained a high submerged speed at that time. However, all but two of her buoyancy tanks were moved forward to improve sea-keeping.

Modernizations

None.

Naval service

Mariotte sank in the Dardanelles 27.7.1915 after having been caught in Turkish net defences and fired on.
