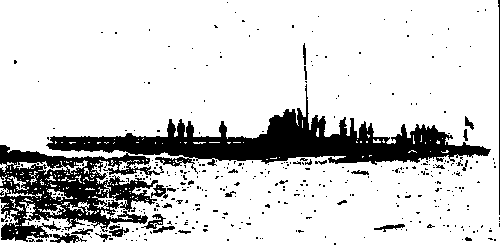

Amiral Bourgois Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Amiral Bourgois	Q082		Arsenal de Rochefort	5/1908	25.11.1912	8/1914	stricken 11.1919

Technical data

Displacement standard, t
Displacement normal, t	556 / 735
Length, m	56.2
Breadth, m	5.50
Draught, m	3.60
No of shafts	2
Machinery	2 Schneider diesels / 2 electric motors
Power, h. p.	1400 / 1000
Max speed, kts	13.9 / 8.7
Fuel, t	diesel oil
Endurance, nm(kts)	2500(10) / 100(5)
Armament	4 - 450 TT (2 bow, 2 aft)
Complement	25
Diving depth operational, m	40

Standard scale images

Graphics

Project history

Authorised under the 1906 programme. Twin-hulled submersible designed by M Bourdelle.

Modernizations

None.

Naval service

No significant events.
