L9061 tank landing craft (1988 - 1989)

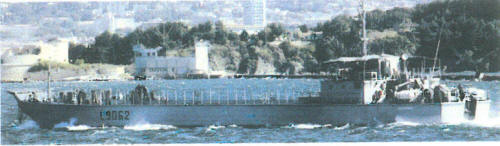

Hallebarde 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| 1997- Rapière | L9061 | SFCN, Villeneuve-la-Garenne | 25.2.1988 | 28.7.1988 | to Chile 12.2011 (Soldado Canave) | ||
| 1997- Hallebarde | L9062 | SFCN, Villeneuve-la-Garenne | 3.11.1988 | 17.2.1989 | stricken 7.2014, to Brazil (Marambaia) |
Technical data
| Displacement standard, t | 369 light |
|---|---|
| Displacement full, t | 751 |
| Length, m | 55.5 pp 59.4 oa |
| Breadth, m | 11.9 |
| Draught, m | 1.10 hull 1.76 max |
| No of shafts | 2 |
| Machinery | 2 SACM UD30V12 M1 diesels |
| Power, h. p. | 1080 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil 20 |
| Endurance, nm(kts) | 2880(8) |
| Armament | 2 x 1 - 20/90 MIT-20F2 (fitted for), 2 x 1 - 12.7/90 |
| Military load | 336 t of cargo |
| Electronic equipment | DRBN-32 radar |
| Complement | 18 |
Standard scale images
similar L9070 1990
Graphics
Hallebarde 2003
Project history
Designed to operate from the TCDs of the Foudre class, the CDIC (Chaland de Débarquement Infanterie Chars, 700t) was essentially an improved EDIC. The wheel-house can be lowered to facilitate docking. Further projected orders have been postponed because of delays in the TCD programme
Modernizations
None.
Naval service
No significant events.
