Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Fabert			Arsenal de Rochefort	1868	1874	1876	stricken 1899
Sané			Arsenal de Toulon	1867	1869	1872	stricken 1892
Seignelay			Arsenal de Toulon	1866	1874	1876	wrecked 1892

Technical data

Displacement normal, t	2017 average
Displacement full, t
Length, m	79.4 wl
Breadth, m	11.0
Draught, m	5.59 - 5.87 max
No of shafts	1
Machinery	Fabert: sails + 1 HC, 4 oval boilers Sané: sails + 1 VC, 4 oval boilers Seignelay: sails + 1 VC, 6 cylindrical boilers
Power, h. p.	1800 - 2000
Max speed, kts	14.9 - 15
Fuel, t	coal 330 - 350
Endurance, nm(kts)
Armament	Fabert, Segnelay: 8 x 1 - 139/21 M1870/M Sané: 6 x 1 - 139/21 M1870/M
Complement	203

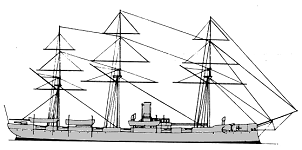

Standard scale images

Project history

Wooden-hulled, straight-stemmed ships rigged as barques without royals. There was a short forecastle and Sané had a tripod foremast. The 139mm guns included a bow and a stern chaser with the rest on the upper deck broadside, the four in Sané being two to a sponson amidships

Modernizations

None.

Naval service

Seignelay wrecked in 1892.
