POTHUAU armoured cruiser (1897)

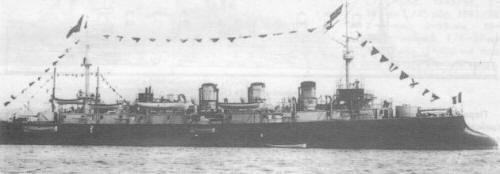

Pothuau 1897

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Pothuau     F C de la Méditerranée, La Seyne 1.1893 19.9.1895 1.1897 gunnery TS 1919, stricken 11.1927


Technical data


Displacement normal, t

5374

Displacement full, t
Length, m

110.0 pp 113.0 oa

Breadth, m

15.3

Draught, m

6.48 max

No of shafts

2

Machinery

2 VTE, 18 Belleville boilers

Power, h. p.

10000

Max speed, kts

19

Fuel, t

coal 640

Endurance, nm(kts)4500(10)
Armour, mmNickel steel; belt: 60 - 35, turrets: 170 - 140, casemates: 55, deck: 85 - 35, CT: 230
Armament

2 x 1 - 194/40 M1893, 10 x 1 - 139/45 M1891/M1893, 10 x 1 - 47/40 M1885, 8 x 1 - 37/20 M1885, 4 - 450 TT (aw, beam)

Complement459


Graphics


<i>Pothuau</i> 1897
Pothuau 1897


Project history

Sometimes classed as protected cruiser on account of thin belt

Ship protection

Thin complete belt protected area from 1.5m below to 2.5m above water, its lower edge was connected with 35mm curved main deck by 85mm slopes. 8 139mm guns were placed in casemates and 2 amidships gun were protected by open back shields.

Modernizations

1919: - 2 x 1 - 194/40; + 2 x 1 - 75/63 M1908 AA

Naval service

Became outdate before WWI and by 1914 served as gunnery TS. She was regarded as good sea boat. Late in the war Pothuau returned to Toulon, and was converted to air balloon carrier. In 1919 she again became gunnery TS, thus turrets were been replaced by antiaircraft guns.
