DUBORDIEU wooden cruiser (1886)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Dubordieu | Arsenal de Cherbourg | 1880 | 1884 | 9/1886 | stricken 1899 |
Technical data
| Displacement normal, t | 3700 |
|---|---|
| Displacement full, t | |
| Length, m | 77.3 wl |
| Breadth, m | 14.0 |
| Draught, m | 6.60 max |
| No of shafts | 1 |
| Machinery | sails + 1 HC, 12 cylindrical boilers |
| Power, h. p. | 3000 |
| Max speed, kts | 13.9 |
| Fuel, t | coal 600 |
| Endurance, nm(kts) |
|
| Armament | 4 x 1 - 165/28 M1881, 12 x 1 - 139/28 M1881, 1 x 5 - 47/25 Hotchkiss, 10 x 5 - 37/17 Hotchkiss, 2 - 356 TT (aw) |
| Complement | 412 |
Standard scale images

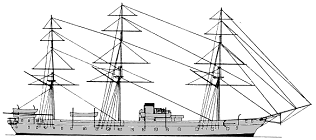

Dubordieu 1886
Project history
A ship-rigged, wooden-hulled cruiser with clipper bow, overhanging stern, forecastle and poop. The funnel was abaft the foremast. The 165mm guns were in upper deck sponsons with the 139mm on the main deck, two being right aft and the rest on the broadside.
Modernizations
None.
Naval service
No significant events.
