VENT D'AMONT patrol boat (1983)
Vent d'Amont
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
DF40 Vent d'Amont |
CMN, Cherbourg: DF40 |
1983: DF40 |
none |
none |
2018: DF40 |
Technical data
| Displacement standard, t | 61 |
|---|---|
| Displacement full, t | 71 |
| Length, m | 29.0 |
| Breadth, m | 5.70 |
| Draught, m | 1.65 |
| No of shafts | 2 |
| Machinery | 2 Poyaud UD 23 diesels |
| Power, h. p. | 2640 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1165(15) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 8 |
Graphics

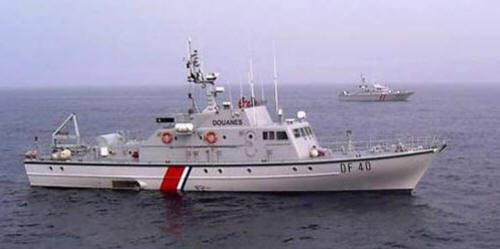

Vent d'Amont
Project history
Medium patrol boats. Custom.
Modernizations
None.
Naval service
No significant events.
