THÉMIS patrol vessel (2004)

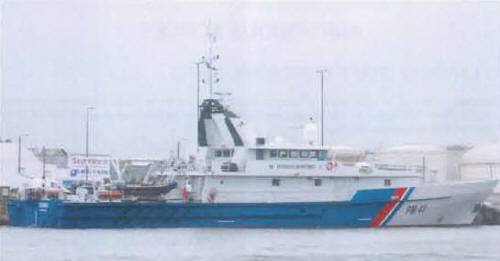

Thémis 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Thémis | PM41 | CMN, Cherbourg | 13.5.2003 | 5.4.2004 | 7.5.2004 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 409 |
| Length, m | 52.5 |
| Breadth, m | 9.00 |
| Draught, m | 2.27 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V4000 M70 diesels |
| Power, h. p. | 6310 |
| Max speed, kts | 21 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | 2x radars |
| Complement | 17 + 4 passengers |
Standard scale images
Thémis 2010
Graphics
Thémis 2007
Project history
Ordered in 2002. Employs the same hull form as the French Navy's P 400 patrol craft. Has fin stabilizers and carries two 6m SRMN600 RIB inspection launches, each powered by a 140hp gasoline outboard.
Modernizations
None.
Naval service
No significant events.
