5! MAUVE patrol boat (1984)

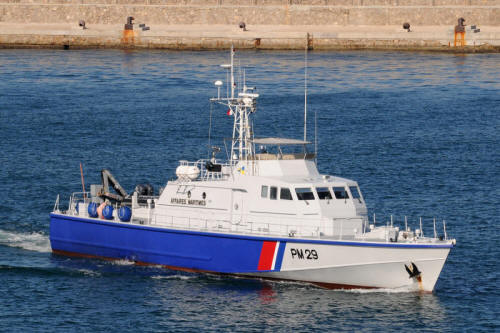

Mauve 2015
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PM29 Mauve |
C N de l'Estérel: PM29 |
1984: PM29 |
none |
none |
in service (2019): PM29 |
Technical data
| Displacement standard, t | 62 |
|---|---|
| Displacement full, t | 71 |
| Length, m | 30.5 |
| Breadth, m | 5.70 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 MWM-Deutz diesels |
| Power, h. p. | 2120 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 900(15.5) |
| Armament | 1 x 1 - 12.7/90, 1 x 1 - 7.5/90 |
| Electronic equipment | radar |
| Complement | 9 |
Graphics
Mauve 2015
Project history
Medium patrol boat. Maritime Police.
Modernizations
1990: new MWM-Deutz diesels were installed (2200hp, 22kts)
Naval service
No significant events.
