ARMOISE patrol boat (1995)
Armoise 2013
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PM32 Armoise |
DCN, Lorient: PM32 |
1995: PM32 |
none |
none |
in service (2019): PM32 |
Technical data
| Displacement standard, t | 73 |
|---|---|
| Displacement full, t | 93 |
| Length, m | 30.5 wl 32.2 oa |
| Breadth, m | 6.10 |
| Draught, m | 1.80 |
| No of shafts | 2 + 1 water-jet |
| Machinery | 2 MWM-Deutz TBD234V15 diesels + 1 MWM-Deutz TBD234V16 diesel |
| Power, h. p. | 2120 + 425 = 2545 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(16) |
| Armament | 1 x 1 - 7.5/90 |
| Electronic equipment | Racal-Decca C180/6, Raytheon R20XX radars |
| Complement | 9 |
Graphics

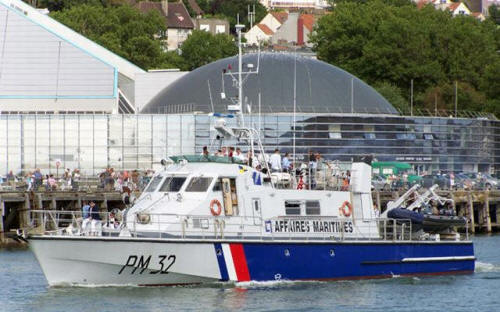

Armoise 2013
Project history
Medium patrol boat. Maritime Police.
Modernizations
None.
Naval service
No significant events.
